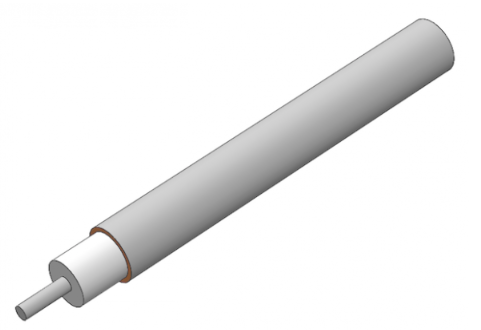

Outer Conductor Diameter

In

.0865

mm

2.2

Center Conductor Diameter

In

0.0201

mm

0.51

Dielectric Diameter

In

0.066

mm

1.68

MATERIALS

Outer Conductor

Copper

Outer Conductor Plating

Tin

Dielectric

PTFE

Center Conductor

SPCW

RoHS Compliant

YES

MECHANICAL CHARACTERISTICS

Temp Range °C

°C

-40 to +125

Inside Bend Radius (Minimum)

In

.125

mm

3.18

Weight

lbs / 100ft

1.58

kg / 100m

2.35

ELECTRICAL CHARACTERISTICS**

Nominal Impedance

Ohms

50.0 +/- 1.5

Velocity of Propagation

-

69.5%

Shielding Effectiveness

db

>165

Voltage Withstanding

VRMS @ 60 Hz

5000

Continuous Working Voltage

VRMS MAX

1500

Maximum Operating Frequency

GHz

20

Attenuation
(db / 100 Ft Typical)

0.5 GHz

15

1.0 GHz

22

5.0 GHz

50

10.0 GHz

80

18.0 GHz

110

26.5 GHz

N/A

40.0 GHz

N/A

50.0 GHz

N/A

65.0 GHz

N/A

90.0 GHz

N/A

Power (Watts Cw
@ 20 °C, Maximum)

0.5 GHz

180

1.0 GHz

130

5.0 GHz

54

10.0 GHz

35

18.0 GHz

24

26.5 GHz

N/A

40.0 GHz

N/A

50.0 GHz

N/A

65.0 GHz

N/A

90.0 GHz

N/A
