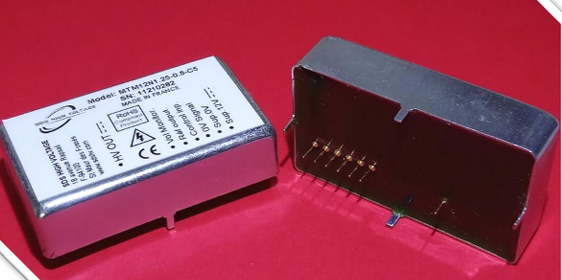

MTM系列PCB安裝超緊湊型高壓電源模塊SDS High Voltage
輸入電壓：12V ±0.5V / 15V ±0.5V / 24V ±1V
輸出電壓范圍：0–600V / 0–1kV / 0–1.25kV / 0–1.5kV
輸出功率：0.5W / 0.8W / 1W(取決于型號)
輸出電流：視型號而定，詳見選型表
電壓調節方式：外部電位器(≥10kΩ)或外部電壓(0–5V 或 0–10V)
電壓精度：±0.2%(最大電壓時)
負載/線性調節率：±0.01%
紋波：10–40mV(滿載時)
溫度系數：100ppm/°C(0–50°C)
工作溫度范圍：-40°C 至 +50°C
尺寸：46.0 × 12.0 × 24.6 mm
重量：約 35g
安裝方式：PCB 安裝，4 個安裝片
輸出方式：標準引腳輸出或可選飛線(50cm，直徑 2mm)
存儲溫度范圍：-40°C 至 +70°C
| MTM series selection guide |
| # | Obsolete reference | Current reference | Vout | Pola- | lout/Pout | Vin | Control | Otption |
| system | system | rity |
| #1 | MT12N601831-5F | MTM12NO.6-0.5-C5 | 600V | - | 0.83mA/0.5W | 12V | 5V | Pin |
| #2 | MT12N601831-10F | MTM12NO.6-0.5-C10 | - | 10V | Pin |
| #3 | MT12N601831-5F-W | MTM12NO.6-0.5-C5-L |
| 5V | Wire |
| #4 | MT12N601831-10F-W | MTM12NO.6-0.5-C10-L | - | 10V | Wire |
| #5 | MT12P601831-5F | MTM12P0.6-0.5-C5 | + | 5V | Pin |
| #6 | MT12P601831-10F | MTM12P0.6-0.5-C10 | + | 10V | Pin |
| #7 | MT12P601831-5F-W | MTM12P0.6-0.5-C5-L | + | 5V | Wire |
| #8 | MT12P601831-10F-W | MTM12P0.6-0.5-C10-L | + | 10V | Wire |
| #9 | MT15N601132-5F | MTM15NO.6-0.8-C5 |
| 1.33mA/0.8W | 15V | 5V | Pin |
| #10 | MT15N601132-10F | MTM15N0.6-0.8-C10 |
| 10V | Pin |
| #11 | MT15N601132-5F-W | MTM15N0.6-0.8-C5-L | 600V | - | 1.33mA/0.8W | 15V | 5V | Wire |
| #12 | MT15N601132-C10W | MTM15NO.6-0.8-C10-L | cont'd | - | cont'd | 10V | Wire |
| #13 | MT15P601132-5F | MTM15P0.6-0.8-C5 |
| + |
| 5V | Pin |
| #14 | MT15P601132-10F | MTM15P0.6-0.8-C10 |
| + |
| 10V | Pin |
| #15 | MT15P601132-5F-W | MTM15P0.6-0.8-C5-L |
| + |
| 5V | Wire |
| #16 | MT15P601132-10F-W | MTM15P0.6-0.8-C10-L |
| + |
| 10V | Wire |
| #17 | MT24N601167-5F | MTM24NO.6-1-C5 |
|
| 1.67mA/1.0W | 24V | 5V | Pin |
| #18 | MT24N601167-10F | MTM24NO.6-1-C10 |
|
| 10V | Pin |
| #19 | MT24N601167-5F-W | MTM24N0.6-1-C5-L |
| - | 5V | Wire |
| #20 | MT24N601167-10F-W | MTM24NO.6-1-C10-L |
| - | 10V | Wire |
| #21 | MT24P601167-5F | MTM24P0.6-1-C5 |
| + | 5V | Pin |
| #22 | MT24P601167-10F | MTM24P0.6-1-C10 |
| + | 10V | Pin |
| #23 | MT24P601167-5F-W | MTM24P0.6-1-C5-L |
| + | 5V | Wire |
| #24 | MT24P601167-10F-W | MTM24P0.6-1-C10-L |
| + | 10V | Wire |
| #25 | MT12N102501-5F | MTM12N1-0.5-C5 | 1000V | - | 0.50mA/0.5W | 12V | 5V | Pin |
| #26 | MT12N102501-10F | MTM12N1-0.5-C10 | - | 10V | Pin |
| #27 | MT12N102501-5F-W | MTM12N1-0.5-C5-L | - | 5V | Wire |
| #28 | MT12N102501-10F-W | MTM12N1-0.5-C10-L | - | 10V | Wire |
| #29 | MT12P102501-5F | MTM12P1-0.5-C5 | + | 5V | Pin |
| #30 | MT12P102501-10F | MTM12P1-0.5-C10 | + | 10V | Pin |
| #31 | MT12P102501-5F-W | MTM12P1-0.5-C5-L | + | 5V | Wire |
| #32 | MT12P102501-10F-W | MTM12P1-0.5-C10-L | + | 10V | Wire |
| #33 | MT15N102801-5F | MTM15N1-0.8-C5 |
| 0.80mA/0.8W | 15V | 5V | Pin |
| #34 | MT15N102801-10F | MTM15N1-0.8-C10 |
| 10V | Pin |
| #35 | MT15N102801-5F-W | MTM15N1-0.8-C5-L |
| 5V | Wire |
| #36 | MT15N102801-10F-W | MTM15N1-0.8-C10-L | - | 10V | Wire |
| #37 | MT15P102801-5F | MTM15P1-0.8-C5 | + | 5V | Pin |
| #38 | MT15P102801-10F | MTM15P1-0.8-C10 | + | 10V | Pin |
| #39 | MT15P102801-5F-W | MTM15P1-0.8-C5-L | + | 5V | Wire |
| #40 | MT15P102801-10F-W | MTM15P1-0.8-C10-L | + | 10V | Wire |
| #41 | MT24N102102-5F | MTM24N1-1-C5 | - | 1.00mA/1.0W | 24V | 5V | Pin |
| #42 | MT24N102102-10F | MTM24N1-1-C10 | - | 10V | Pin |
| #43 | MT24N102102-5F-W | MTM24N1-1-C5-L |
| 5V | Wire |
| #44 | MT24N102102-10F-W | MTM24N1-1-C10-L |
| 10V | Wire |
| #45 | MT24P102102-5F | MTM24P1-1-C5 | + | 5V | Pin |
| #46 | MT24P102102-10F | MTM24P1-1-C10 | + | 10V | Pin |
| #47 | MT24P102102-5F-W | MTM24P1-1-C5-L | + | 5V | Wire |
| #48 | MT24P102102-10F-W | MTM24P1-1-C10-L | + | 10V | Wire |
| #49 | MT12N122401-5F | MTM12N1.25-0.5-C5 | 1250V | - | 0.4mA/0.5W | 12V | 5V | Pin |
| #50 | MT12N122401-10日 | MTM12N1.25-0.5-C10 |
| 10V | Pin |
| #51 | MT12N122401-5F-W | MTM12N1.25-0.5-C5-L |
| 5V | Wire |
| #52 | MT12N122401-10F-W | MTM12N1.25-0.5-C10-L | 1250V | - | 0.4mA/0.5W | 12V | 10V | Wire |
| #53 | MT12P122401-5F | MTM12P1.25-0.5-C5 | cont'd | + | Cont'd | Cont'd | 5V | Pin |
| #54 | MT12P122401-10F | MTM12P1.25-0.5-C10 |
| + |
|
| 10V | Pin |
| #55 | MT12P122401-5F-W | MTM12P1.25-0.5-C5-L |
| + |
|
| 5V | Wire |
| #56 | MT12P122401-10F-W | MTM12P1.25-0.5-C10-L |
| + |
|
| 10V | Wire |
| #57 | MT15N122641-5F | MTM15N1.25-0.8-C5 |
| - | 0.64mA/0.8W | 15V | 5V | Pin |
| #58 | MT15N122641-10F | MTM15N1.25-0.8-C10 |
| - | 10V | Pin |
| #59 | MT15N122641-5F-W | MTM15N1.25-0.8-C5-L |
|
| 5V | Wire |
| #60 | MT15N122641-10F-W | MTM15N1.25-0.8-C10-L |
| - | 10V | Wire |
| #61 | MT15P122641-5F | MTM15P1.25-0.8-C5 |
| + | 5V | Pin |
| #62 | MT15P122641-10F | MTM15P1.25-0.8-C10 |
| + | 10V | Pin |
| #63 | MT15P122641-5F-W | MTM15P1.25-0.8-C5-L |
| + | 5V | Wire |
| #64 | MT15P122641-10F-W | MTM15P1.25-0.8-C10-L |
| + | 10V | Wire |
| #65 | MT24N122801-5F | MTM24N1.25-1-C5 |
|
| 0.80mA/1.0W | 24V | 5V | Pin |
| #66 | MT24N122801-10F | MTM24N1.25-1-C10 |
|
| 10V | Pin |
| #67 | MT24N122801-5F-W | MTM24N1.25-1-C5-L |
|
| 5V | Wire |
| #68 | MT24N122801-10F-W | MTM24N1.25-1-C10-L |
| - | 10V | Wire |
| #69 | MT24P122801-5F | MTM24P1.25-1-C5 |
| + | 5V | Pin |
| #70 | MT24P122801-10F | MTM24P1.25-1-C10 |
| + | 10V | Pin |
| #71 | MT24P122801-5F-W | MTM24P1.25-1-C5-L |
| + | 5V | Wire |
| #72 | MT24P122801-10F-W | MTM24P1.25-1-C10-L |
| + | 10V | Wire |
| #73 | MT12N152331-5F | MTM12N1.5-0.5-C5 | 1500V | - | 0.33mA/0.5W | 12V | 5V | Pin |
| #74 | MT12N152331-10F | MTM12N1.5-0.5-C10 |
| 10V | Pin |
| #75 | MT12N152331-5F-W | MTM12N1.5-0.5-C5-L | - | 5V | Wire |
| #76 | MT12N152331-10F-W | MTM12N1.5-0.5-C10-L |
| 10V | Wire |
| #77 | MT12P152331-5F | MTM12P1.5-0.5-C5 | + | 5V | Pin |
| #78 | MT12P152331-10F | MTM12P1.5-0.5-C10 | + | 10V | Pin |
| #79 | MT12P152331-5F-W | MTM12P1.5-0.5-C5-L | + | 5V | Wire |
| #80 | MT12P152331-10F-W | MTM12P1.5-0.5-C10-L | + | 10V | Wire |
| #81 | MT15N152531-5F | MTM15N1.5-0.8-C5 | - | 5V | Pin |
| #82 | MT15N152531-10F | MTM15N1.5-0.8-C10 |
| 0.53mA/0.8W | 15V | 5V | Pin |
| #83 | MT15N152531-5F-W | MTM15N1.5-0.8-C5-L | - | 10V | Wire |
| #84 | MT15N152531-10F-W | MTM15N1.5-0.8-C10-L | - | 5V | Wire |
| #85 | MT15P152531-C5 | MTM15P1.5-0.8-C5 | + | 10V | Pin |
| #86 | MT15P152531-C10 | MTM15P1.5-0.8-C10 | + | 5V | Pin |
| #87 | MT15P152531-5F-W | MTM15P1.5-0.8-C5-L | + | 10V | Wire |
| #88 | MT15P152531-10F-W | MTM15P1.5-0.8-C10-L | + | 5V | Wire |
| #89 | MT24N152671-5F | MTM24N1.5-1-C5 | - | 0.97mA/1.0W | 24V | 5V | pin |
| #90 | MT24N152671-10F | MTM24N1.5-1-C10 | - | 10V | Pin |
| #91 | MT24N152671-5F-W | MTM24N1.5-1-C5-L | - | 5V | Wire |
| #92 | MT24N152671-10F-W | MTM24N1.5-1-C10-L | - | 10V | Wire |
| #93 | MT24P152671-5F | MTM24P1.5-1-C5 | 1500V | + | 0.97mA/1.0W | 24V | 5V | pin |
| #94 | MT24P152671-10F | MTM24P1.5-1-C10 | cont'd | + | cont'd | cont'd | 10V | Pin |
| #95 | MT24P152671-5F-W | MTM24P1.5-1-C5-L |
| + |
|
| 5V | Wire |
| #96 | MT24P152671-10F-W | MTM24P1.5-1-C10-L |
| + |
|
| 10V | Wire |
